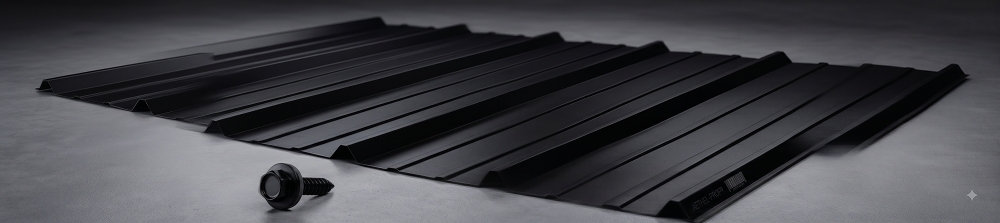

Custom-cut Tuff-Rib roofing and siding panels available in 29 Gauge steel, with multiple colors and finish options.
Tuff-Rib features a classic trapezoidal rib design with an anti-siphon groove for superior performance and leak resistance.

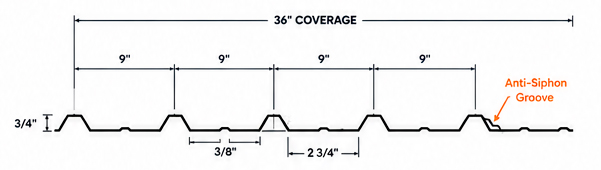

COVERAGE
RIB HEIGHT
RIB SPACING
GAUGE
Helps prevent water from being drawn up panel laps.
More coverage means faster installation.
Custom-cut to the required length, from 3' up to 45'.

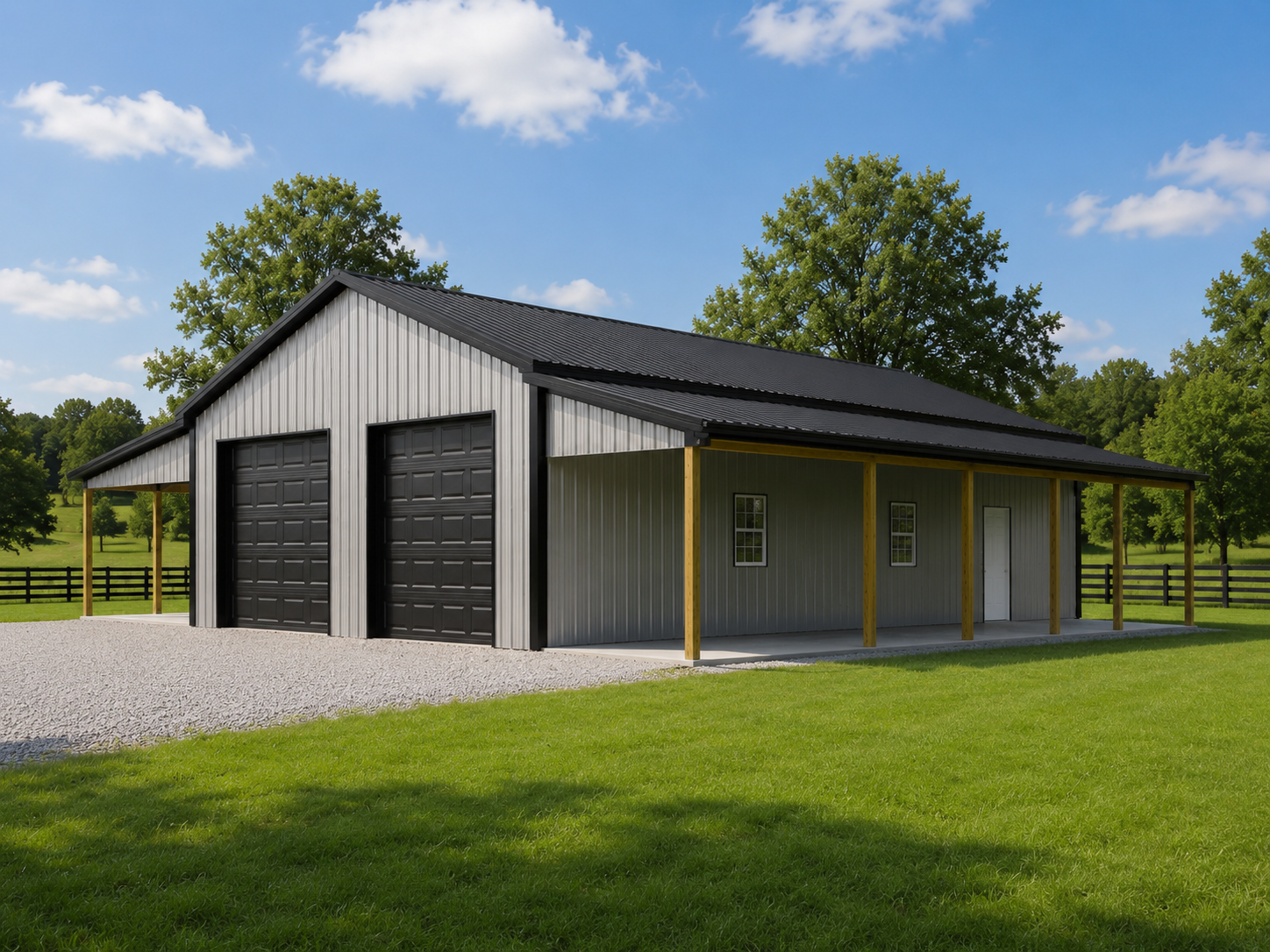

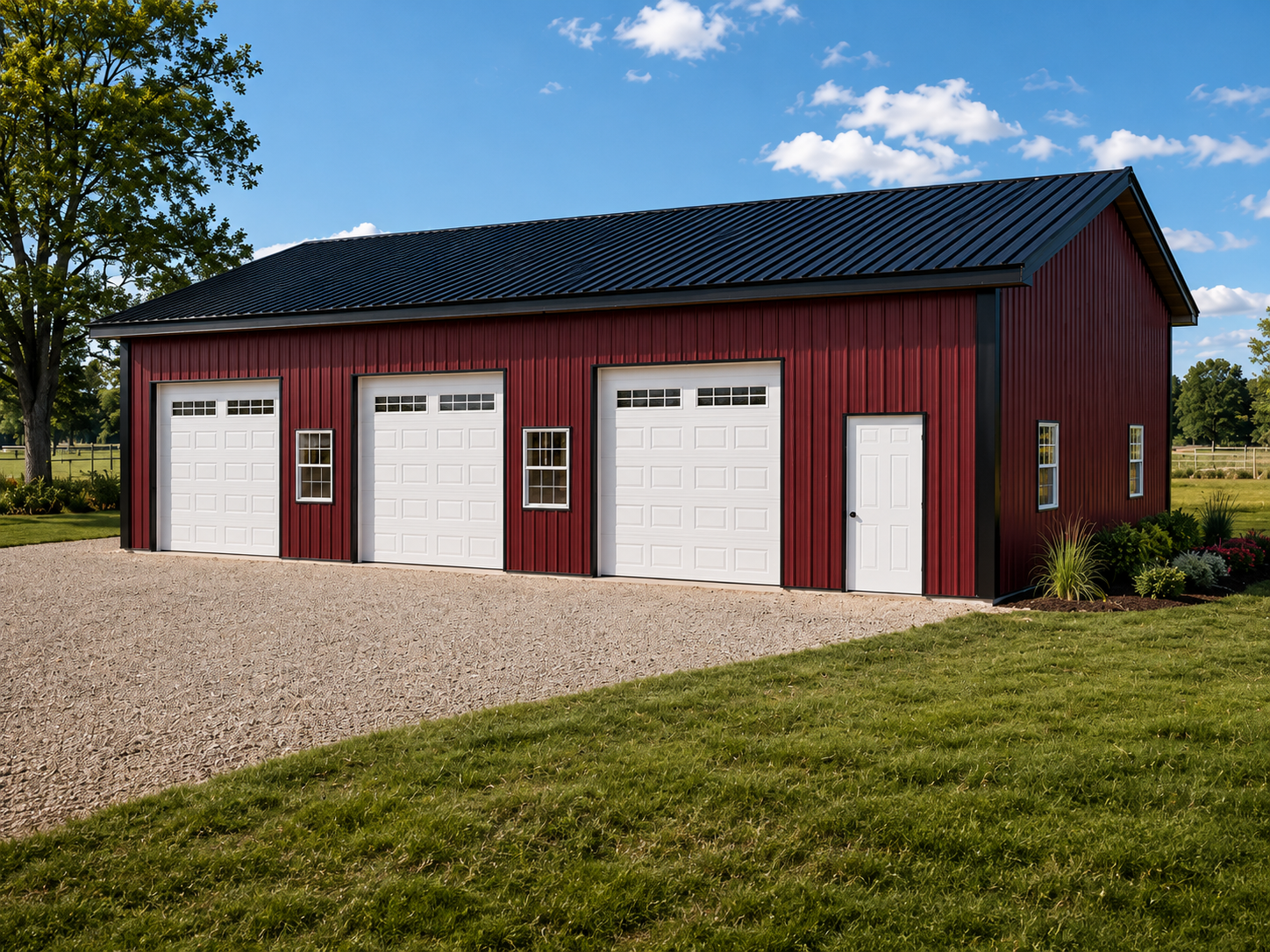

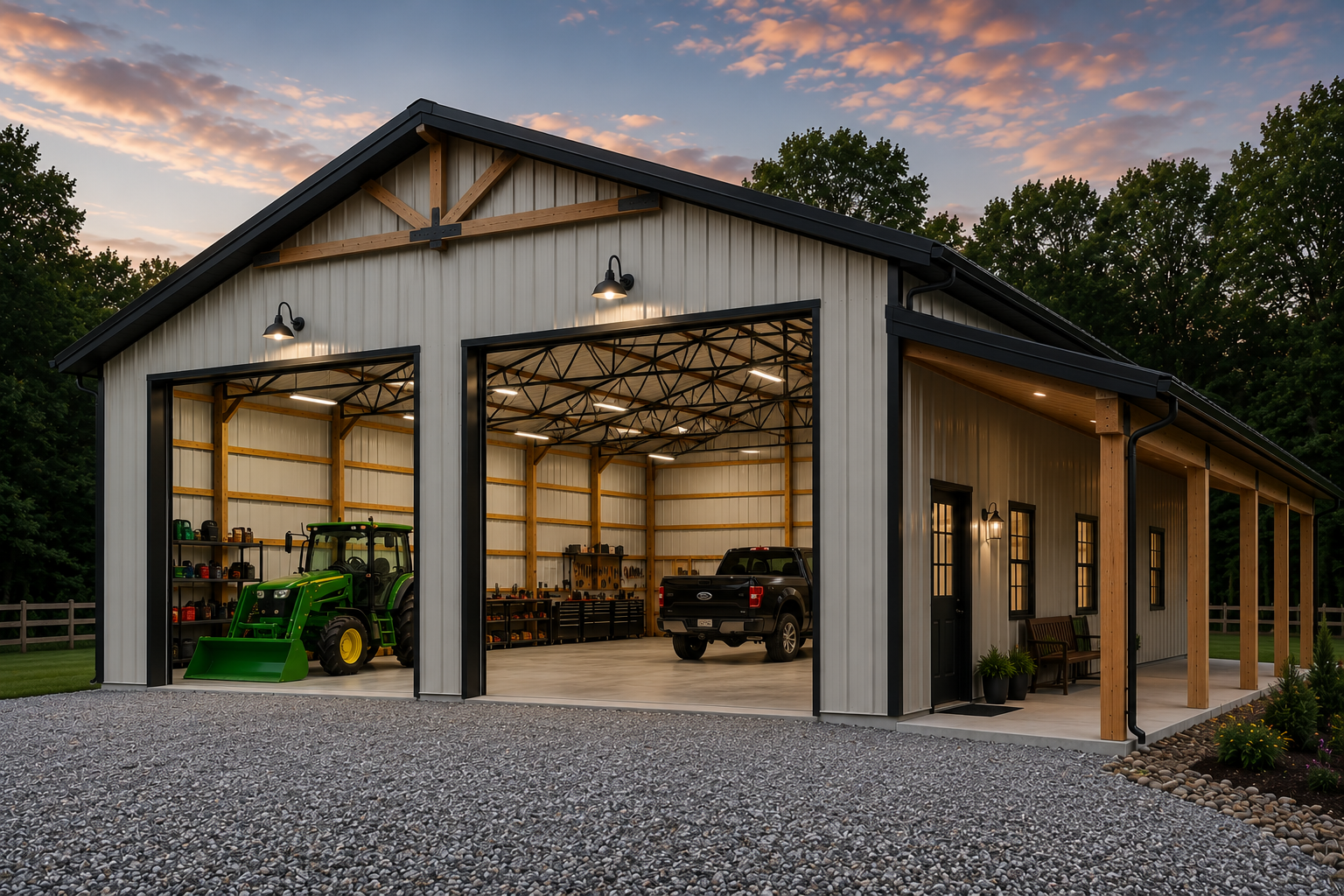

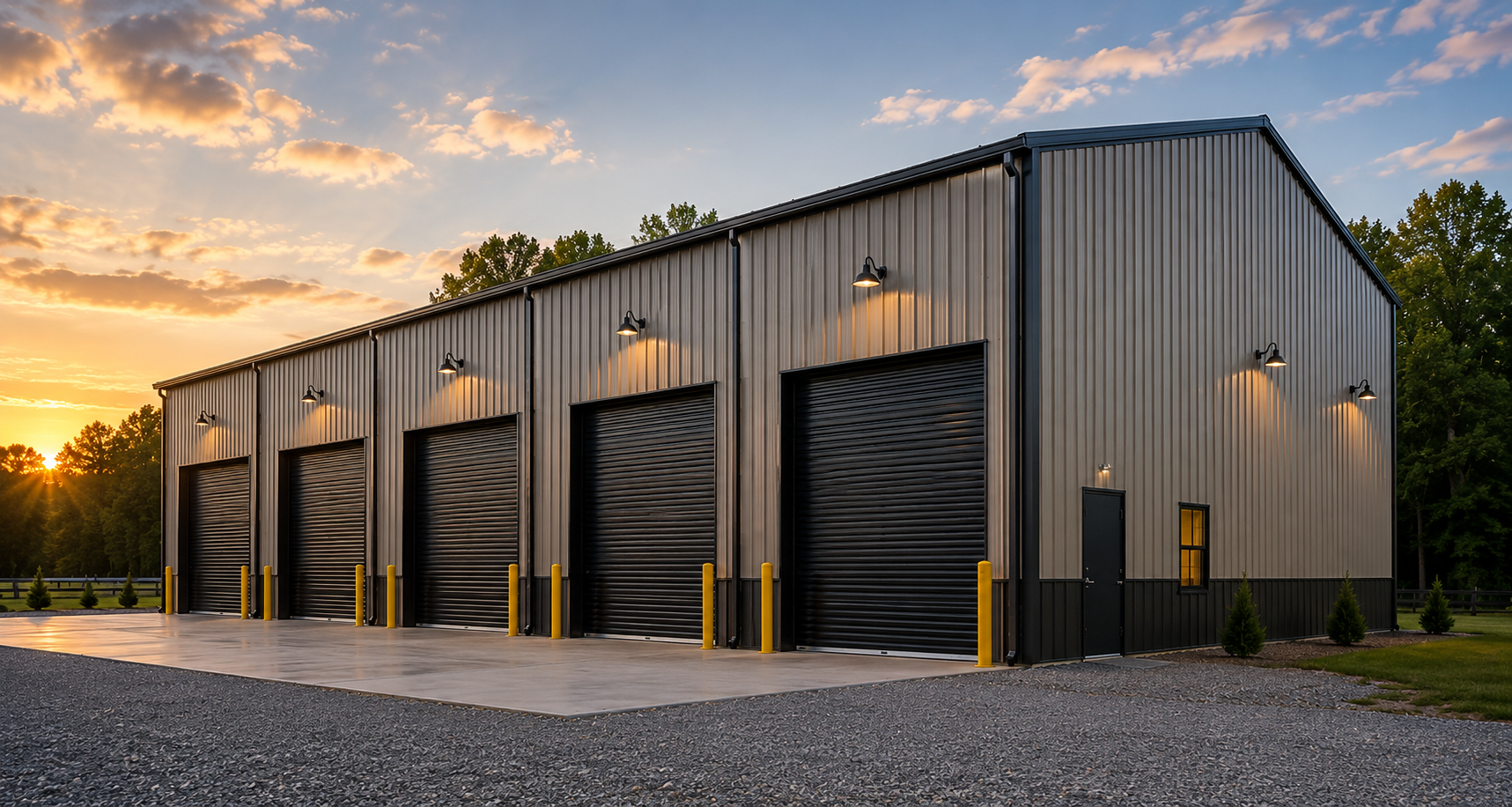

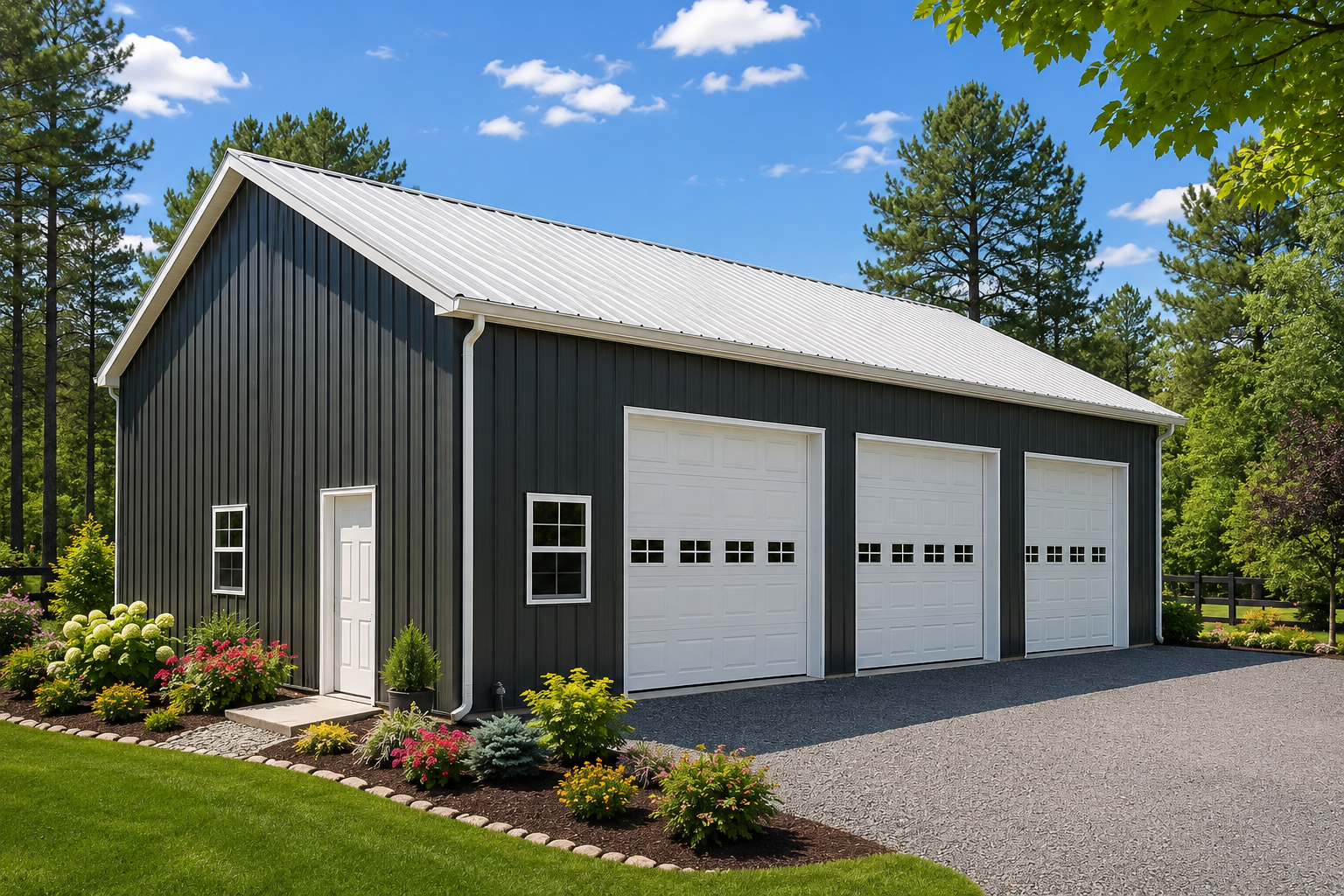

Suitable for a wide range of roof pitches and siding applications
The best value in metal roofing panels.
Hight strength steel with long-lasting protection.
FADE & CHALK WARRANTY
UNPAINTED GALVALUME
| Coverage | 36" | Panel Length | 3' - 45' |
| Rib Height | 3/4" | Minimum Slope | 2.5:12 |
| Rib Spacing | 9" on Center | Fastening | Exposed Fastened |
| Gauges | 29 ga (Standard) 26 ga (Optional) |
Application | Roof & Wall |
Send us your lengths, quantities and color choice for a complete panel quote.
865-888-5500
